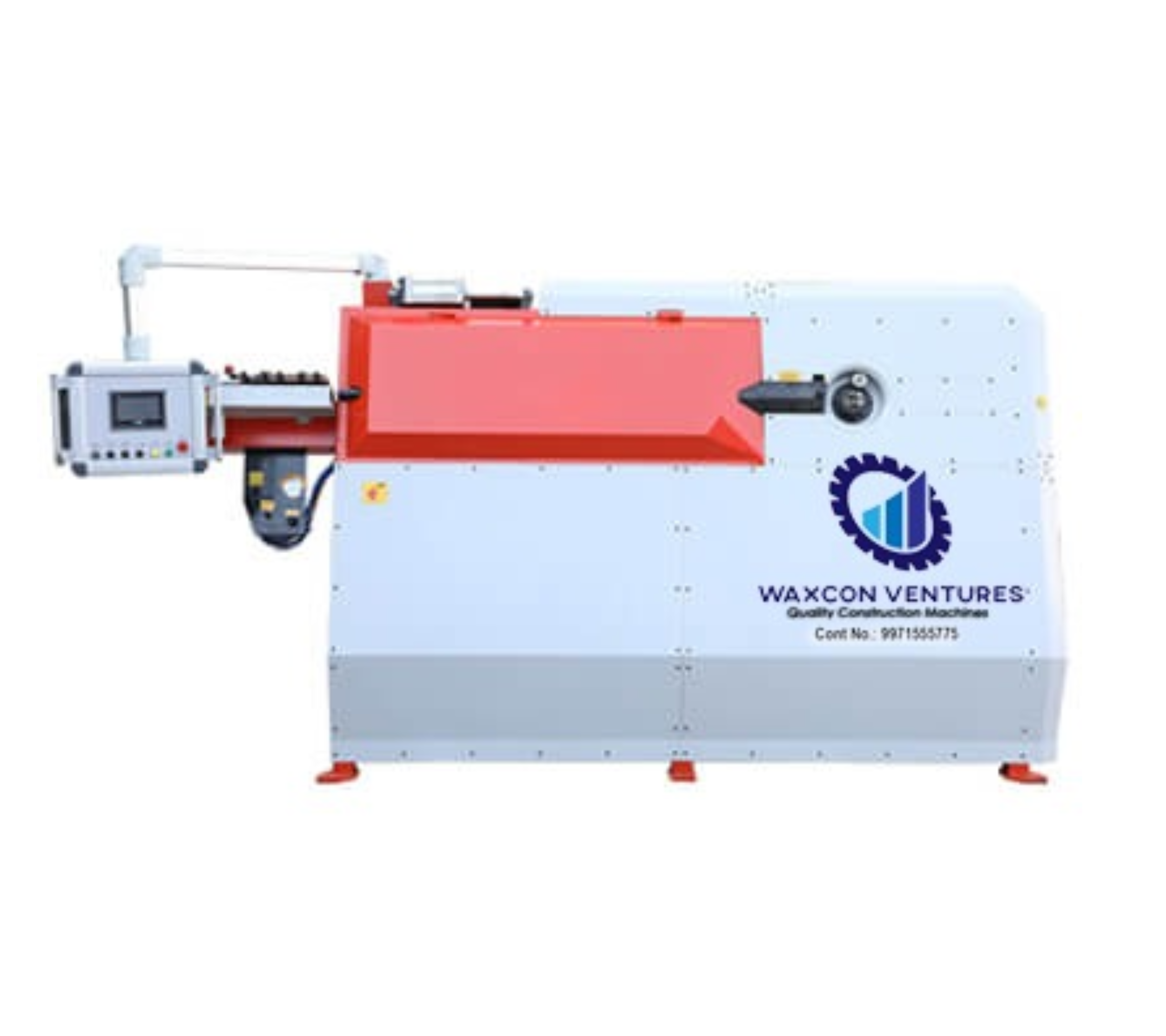

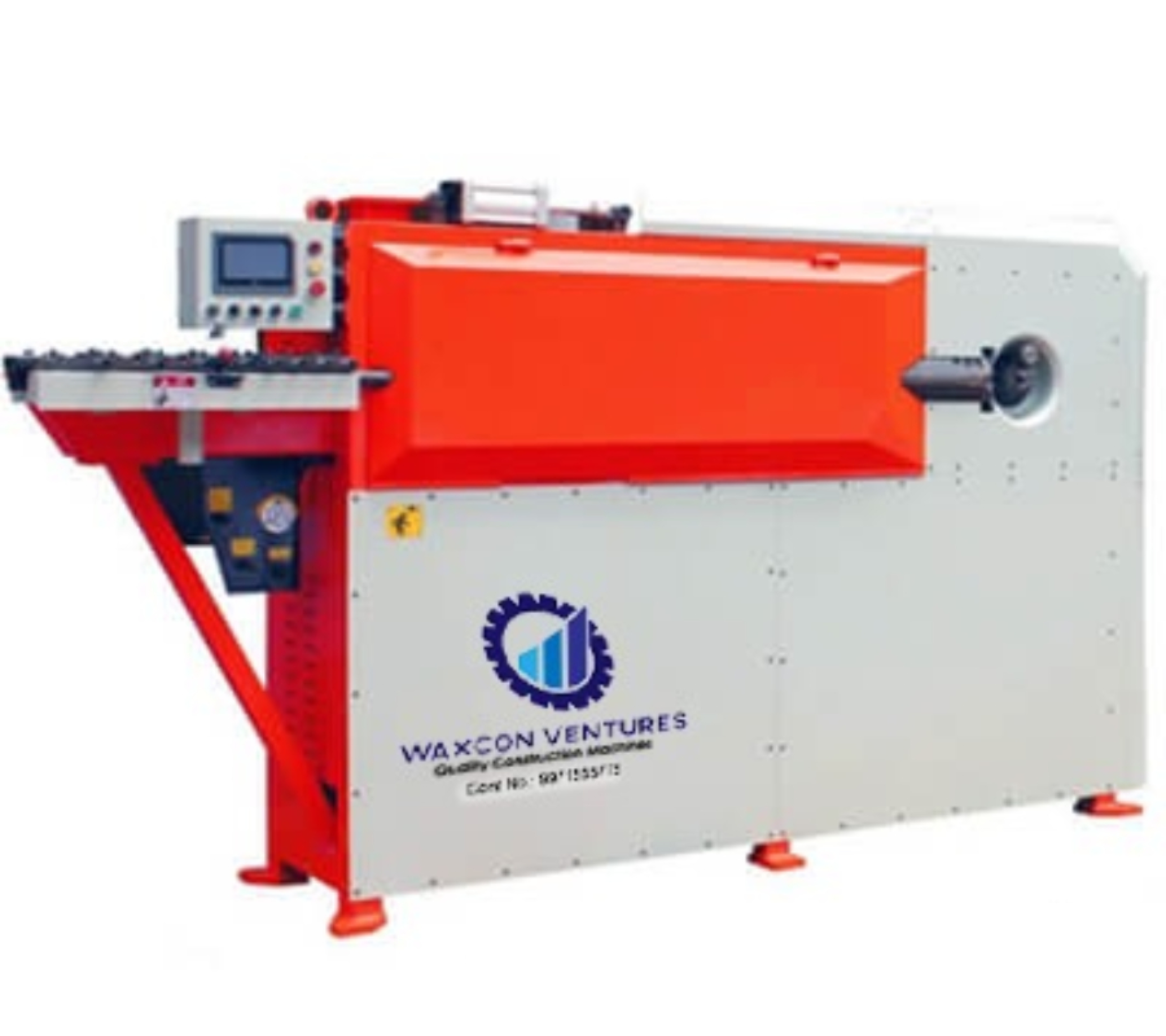

Automatic Ring Making Machine

CNC Ring Making Machine 4-10mm Model

Model: GT4-10D
Single Wire Bending: 4-10 mm in MS Bar
Double Wire Bending: 4-8 mm in MS Bar
Max. Bending Angle: 180 Degree.
Max. Traction Speed: 80m/min.
Max. Bending Speed: 800/Sec.
Average Power Consumption: 4KW
Rated Power total:: 27 Kw with Compressor
Operation: Fully Automatic CNC Control
Production: 1000 Pcs/Hr

The Automatic Ring Making Machine (GT4-10D), also known as a CNC Ring Machine or Fully Automatic Ring Machine, is a state-of-the-art bar bending solution designed for high-speed and precise production of rings and stirrups. This advanced machine runs on 3-phase power supply and is specially engineered for construction companies, contractors, and builders who require accuracy, speed, and consistency in bar bending operations. Built with advanced CNC control technology, the GT4-10D automatic machine not only enhances productivity but also reduces manual effort, making it an essential choice for modern infrastructure projects such as residential buildings, commercial complexes, bridges, flyovers, and industrial constructions.

What is an Automatic Ring Making Machine?

An automatic ring making machine is a specialized equipment that automates the process of bending steel bars into circular and square shapes. Unlike manual or semi-automatic machines, the GT4-10D CNC ring machine provides precise bending with high output capacity. With features like single wire bending (4–10mm) and double wire bending (4–8mm), this machine saves time and reduces labor dependency, ensuring faster project execution.

Key Features of GT4-10D CNC Ring Machine

✅ High Bending Capacity – Supports single wire bending of 4-10mm and double wire bending of 4-8mm in MS bars.
✅ Fast Production – Delivers up to 1000 pieces per hour, ensuring maximum productivity.
✅ Advanced CNC Control – Fully automatic system for precision and repeatability.
✅ Strong Performance – Equipped with 27 KW power with compressor for heavy-duty operations.
✅ High Speed Operation – Traction speed of 80m/min and bending speed of 800/sec.
✅ Energy Efficient – Low power consumption with average usage of 4 KW.
✅ Durable & Reliable – Built for long life and continuous operation in construction environments.

Applications of Automatic Ring Making Machine

The Automatic Ring Making Machine GT4-10D is widely used in

Column rings for residential and commercial buildings
Stirrups and reinforcement bars for beams and pillars
Circular & square rings for concrete structures
High-volume rebar production for infrastructure projects
Construction of bridges, highways, and flyovers

Benefits of Choosing Our Fully Automatic Ring Machine

🚀 Higher Productivity – Meet tight deadlines with faster ring production.
⚙️ Automation Advantage – Less labor, more accuracy, reduced costs.
🔒 Precision & Consistency – Every ring is uniform with exact measurements.
💪 Heavy-Duty Performance – Designed for continuous 24/7 operation.
💰 Cost-Efficient – Save on manpower and material wastage.
